Features

FPGA: Xilinx XC7Z045-3FFG900 Zynq-7000

- Dual ARM Cortex-A9 1GHz Core

- NEON DSP co-processor for each core

- 350K LCs

1GB DDR3

NAND Modules

- Cosmost : CFM-002 (up to 2)

- Cosmos : CFM-001 (only 1)

1 SD CARD Slot

Dual PCIe Gen2 x8 End-Points (Cabled PCIe Interface)

1 Gigabit Ethernet Interface

1 USB 2.0 (configurable to Host or Device)

JTAG and Debug Interface

1 USB-UART Port

1 ARM JTAG

1 PL JTAG

1 Digilent USB-JTAG

Status LEDs

Buttons and Tactile switches

Indicators and Switches

Shipping Materials

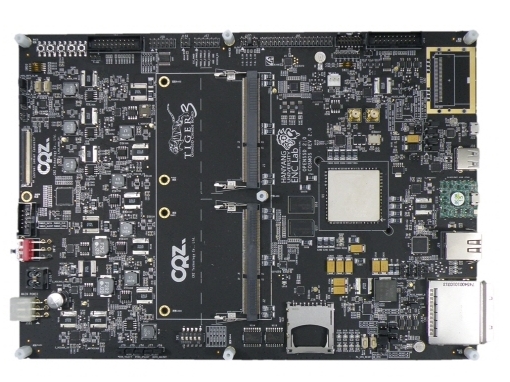

Cosmos Openssd Board : 1EA

AC/DC Adapter (12V/3A) : 1EA

DC Power Adapter Converter Jack : 1EA

USB 2.0 to Micro usb Cable (Micro-B Type , 1M ) : 1EA
