Price : USD $6,150

help@crz-tech.com ( 031-701-5057)

구매하기



Features

50. OpenSSD capable – NVMe Host Controller + NAND Flash Controller + FTL
50. 200Gbps network access via dual QSFP28 cages
50. NVMe-Over-Fabric enables NVMe SSD-based networked storage expansion(up to 4 NVMe SSDs)
50. Latency is low as external CPU intervention is not needed
50. Cost-effective remote storage array is enabled as no external Network Interface Card(NIC) is needed

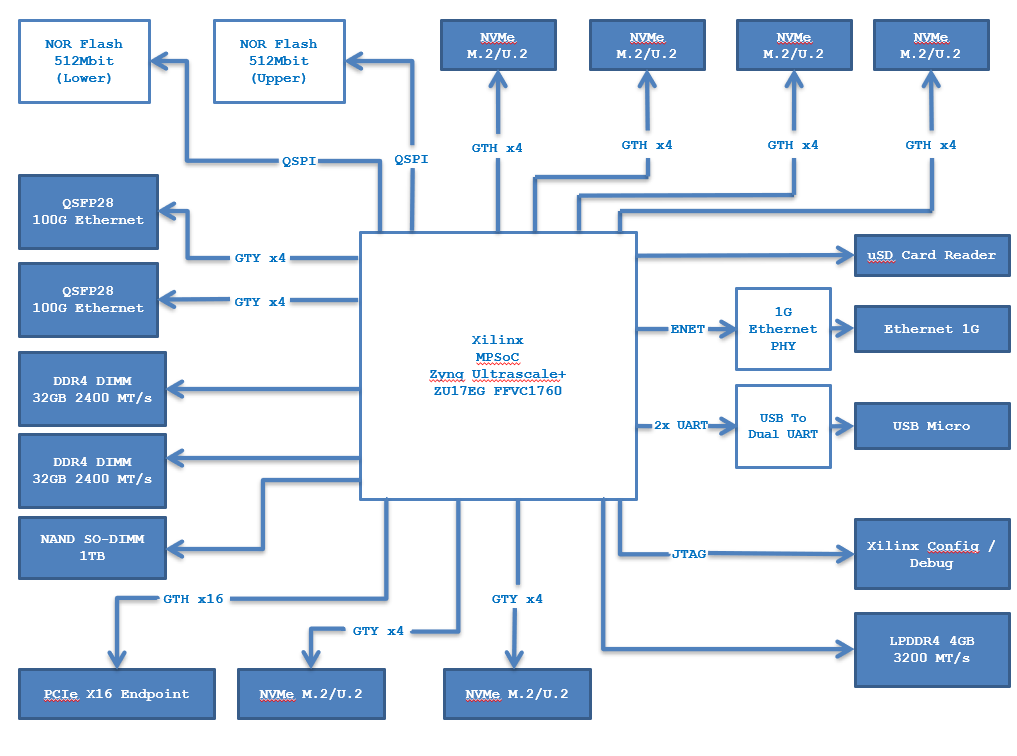

Block Diagram

DAISYPlus PCIe NVMe Storage Accelerator

Hardware Specification

• Xilinx Zynq Ultrascale+ ZU17EG FPGA (XCZU17EG-2FFVC1760-E)
  • Quad-core ARM Cortex-A53 1.5GHz
  • Dual-core ARM Cortex-R5 600MHz
  • ARM Mali-400 MP2 Graphics Processing Unit(GPU)
• Two Programmable clocks
• 4GByte LPDDR4 (DDR4-3200)

50. Two 512Mbit Quad-SPI(QSPI) Flash Memories
50. SD CARD Slot
50. 10/100/1000 Ethernet
50. JTAG and Debug Interface
    14. USB Type B Interface
    14. Two UART Ports
    14. Digilent JTAG
50. DIP Switch for various boot mode(JTAG/SD/QSPI)
50. Four Status LEDs
50. Buttons and Tactile switches
50. Two 100G Ethernets
50. Two DDR4 288-pin DIMMs(32GB, DDR4-2400)
50. 1 NAND Flash Module(1TB, CFM-002)
50. PCIe Edge Finger: PCIe Gen3 x16
50. 120-pin Expansion connector
    14. USB 3.0
    14. Display Port
    14. SATA
    14. 4x GTR 6.0 Gb/s
    14. Two PCIe Gen4 x4 Root Ports(M.2 or U.2 NVMe connector)
50. 140-pin Expansion connector
    14. Four PCIe Gen4 x4 Root Ports(M.2 or U.2 NVMe connector)
50. Main Power : DC 12V





Documents

http://crztech.iptime.org:8080/Release/OpenSSD/DaisyPlus-OpenSSD/



Shipping Materials

50. DaisyPlus Openssd Board : 1ea
50. AC/DC Adapter (12V/3A) : 1ea
50. DC Power Adapter Converter Jack : 1ea
50. USB A to B Type cable : 1ea
