Mango-M32F4 Main Board [ Cortex-M4 EVB ]
Features
- STM32F407 CPU 탑재
- ARM Cortex-M4 32b MCU+FPU
- 608 CoreMark
- 180Mhz
- 225 DMIPS
SRAM 192Kbytes
Flash Memory 1MBytes
- Connectivity
- JTAG 20 Standard Connector
- RS232 (USART1) x 1
- RS485 / RS232 (USART6) x 1
- CAN x 1
- Ethernet RTL8201 10/100Mbps x 1
- USB device x 1
- USB Host x 1
- Micro SD card Slot x 1
Power : DC-JACK 5V, 1A
Button : Button x 2
Reset Button x 1
Boot Switch x 1
LED indicator x 3
Expansion Connector ( 8x2 ) : I2C GPIO etc
Dimensions : 120 x 76 mm
Package Contents
Mango-M32F4 : 1ea

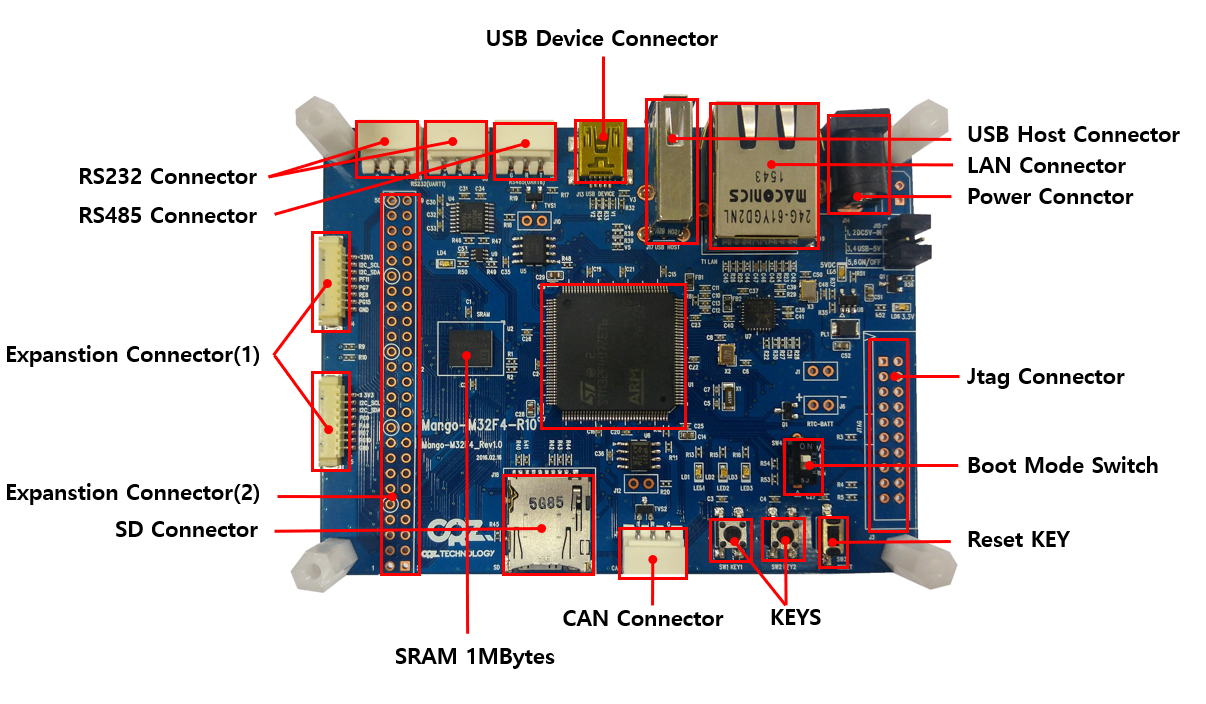

부품 배치도

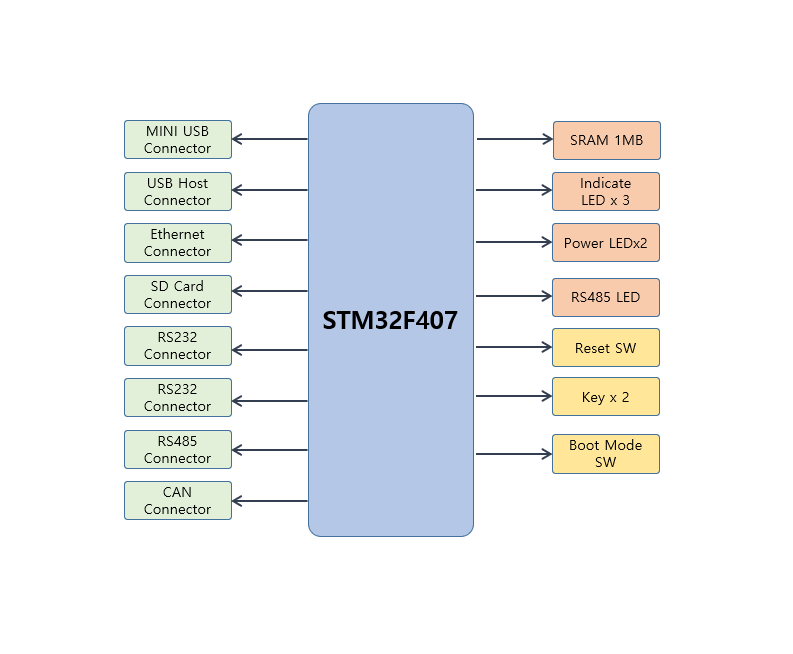

블록 다이어그램
